Hem / Professional Standard / Universella tryckdimrar, effektutökare, 1-10 V styrenhet och universal vriddimmer / SDS12/1-10V
SDS12/1-10V

SDS12/1-10V

1-10V control dimmer switch for electronic ballast units, 1 NO contact 600VA

1 NO contact not potential free 600VA and 1-10V control output 40mA. Only 0.5 watt standby loss. With adjustable minimum brightness and dimming speed. With switching operation for children’s rooms and snooze function. Modular device for DIN-EN 60715 TH35 rail mounting. 1 modul = 18mm wide, 58mm deep. Zero passage switching with soft ON and soft OFF to protect lamps. Also adapted for LED driver with 1-10V passive interface, without voltage source up to 0.6mA, above this value an additional voltage source is necessary. Universal control voltage 8 to 230V UC, local and central on/off with same potential. Supply voltage 230V electrically isolated. State-of-the-art hybrid technology combines advantages of nonwearing electronic control with high capacity of special relays. The brightness level is stored on switch-off (Memory). In case of a power failure the switch position and the brightness stage are stored and may be switched on when the power supply is restored. The minimum brightness (fully dimmed) is adjustable with the upper %lamp rotary switch. At the same time, you define whether the children’s room function and the snooze function are active (+KI +SL). The dimming speed is adjustable using the lower dimming speed rotary switch. The load is switched on and off by a bistable relay at output EVG (electronic ballast units). Switching capacity for fluorescent lamps or LV halogen lamps with electronic ballast units 600VA. By using a bistable relay coil power loss and heating is avoided even in the on mode. After installation, wait for short automatic synchronisation before the switched consumer is connected to the mains. Either direction pushbuttons can be connected to arrow up/arrow down or these terminals are bridged and a pushbutton is connected as universal pushbutton. As direction pushbutton arrow up is switch on and dim up and arrow down is switch off and dim down. A double click at arrow up triggers the auto­matic updimming until full brightness with dim speed. A double click at arrow down triggers the snooze function. The children‘s room function is realized with the pushbutton at arrow up. As a universal pushbutton, change the direction by briefly releasing the pushbutton. Switching operation for children’s rooms KI (universal pushbutton or direction pushbutton arrow up): If the light is switched on by holding down the pushbutton, it starts at the lowest brightness level after approx. 1 second and dims up slowly as long as the pushbutton is held down without modifying the last stored brightness level. Snooze function SL (universal pushbutton or direction pushbutton arrow down): With a double impulse the lighting is dimmed down from the current dimming position to the minimum brightness level and switched off. The current dimming position as well as the adjustable minimum brightness level determine the dimming time (max. = 60 minutes) which can be reduced as required. It can be switched off at any time by short-time control commands during the lighting is dimmed down. Holding down the pushbutton during the dimming down process dims up and stops the snooze function.

Art.-Nr.: 21100800 69.20€/St. *

* Recommended retail price plus VAT.

Data sheet
SDS12/1-10V
SDS12/1-10V bis KW 07/2010
SDS12/1-10V ab KW 08/2010 bis KW 14/2015, Kinderzimmerschaltung und Schlummerschaltung ausschaltbar
SDS12/1-10V ab KW 15/2015, auch zur Ansteuerung von LED-Konvertern
SDS12/1-10V ab KW 21/2022

Andra tittade också:

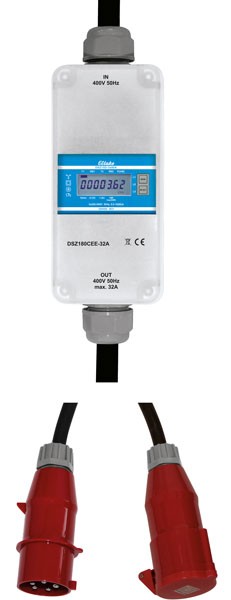

DSZ180CEE-32A MID
