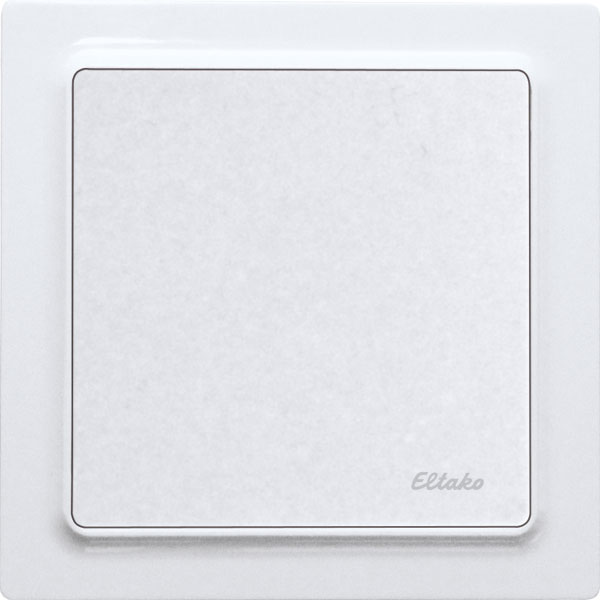

FTA55D-wg

Wireless pushbutton dimming actuator

Wireless pushbutton dimming actuator. For single mounting 80x80x15/33mm or mounting into the E-Design55 switching system. Pure white glossy. With power MOSFET. 230V incandescent lamps and halogen lamps up to 300W, 230V LEDs up to 100W. No inductive (wound) transformers. With switching operation for childrenÂ‘s rooms and snooze function. With integrated universal/direction pushbutton and terminals for additional wired pushbuttons. Standby loss only 0.7 watt. Smart Home sensor and actuator. Up to 32 wireless universal pushbuttons, wire less direction pushbuttons, wire less central control pushbuttons and motion sensors FB65B and FBH65SB can be taught in. In addition the actuator can be locally controlled with a conventional 230V wired pushbutton without glow lamp. The integrated pushbutton works ex work as an universal pushbutton and can be taught-in as an direction pushbutton using the corresponding. Mounting over a 55mm switch box. 15mm over and 33mm into the box. 230V power supply and wired pushbutton terminals on the rear.

Art.-Nr.: 30000115	93.60€/St. *

* Recommended retail price plus VAT.
