Home / Professional Smart Home / Our new IP actuators for the classic, wired installation. Apple Home certified, REST-API and "built for Matter". / EUD62NPN-IP/110-240V
EUD62NPN-IP/110-240V

EUD62NPN-IP/110-240V

partner logo

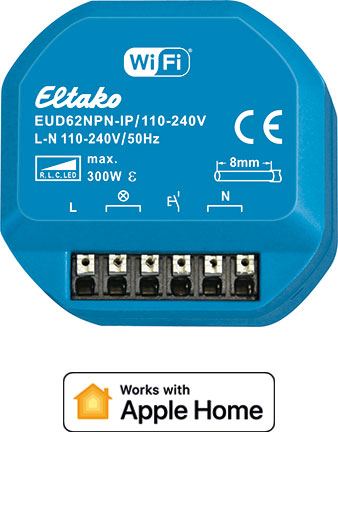

Universal dimming actuator IP via Wi-Fi, up to 300W. Apple Home certified, REST-API and built for Matter

Universal dimming actuator IP via Wi-Fi. Apple Home certified, REST-API and built for Matter. With power MOSFET. Dimmable 230V LED lamps in phase cut-off mode up to 300W or in phase control mode up to 100W depending on ventilation conditions. 230V incandescent lamps and ­halogen lamps up to 300W depending on ventilation conditions. No minimum load. Only 0.7 watt standby loss. For installation. 49x51mm wide, 25mm deep. The terminals are plug-in terminals for conductor cross-sections of 0.2mm2 to 2.5mm2. Zero passage switching with soft ON and soft OFF to protect lamps. Supply voltage, switching voltage and control voltage local 110-240V. The brightness level is stored on switch-off (memory). If supply voltage fails, the device is switched off in defined mode. Automatic electronic overload protection and overtemperature switch-off. With control input for a mains voltage control button that may be installed in front of it. Glow lamp ­current is not permitted. The Wi-Fi link uses the 2.4 GHz frequency band and permits Over-the-Air updates (OTA). This actuator is Apple Home certified and can be officially controlled directly via the Apple Home app and Siri. No additional controller or gateway are required: The Apple Home app offers the following functions: Create if-then automations including geofencing. Manual switching. Call up status. An Apple controller, e.g. HomePod mini, is required for remote access. As an option, the actuator can be configured via the Eltako Connect app. A development version of the REST API is available through the device’s online product page. This is continuously being further developed. The actuator meets all the specifications for the Matter standard, is built for Matter and is in the Matter certification process.

Art.-Nr.: 30062002 82.10€/St. *

* Recommended retail price plus VAT.

Datasheet_EUD62NPN-IP_110-240V.pdf
Declaration of conformity
Series 62-IP Developer Guide
License reference Espressif-SDK
FAQ
EUD62NPN-IP/110-240V
Landingpage
