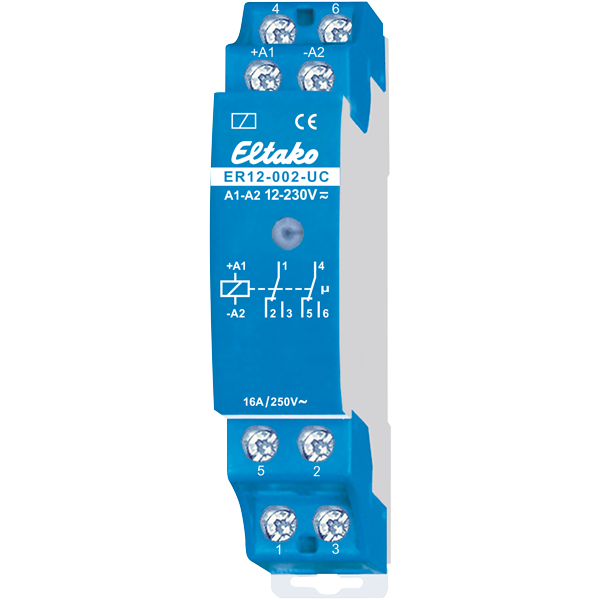

ER12-002-UC

Switching and control relay UC. 2 CO contacts potential free 16A/250V AC

Switching and control relay UC. No standby loss. State-of-the-art hybrid technology combines advantages of nonwearing electronic control with high capacity of special relays. Very low switching noise. Contact position indicator with LED. Integrated free-wheeling anti-surge diode (A1 = +, A2 = -). By using a bistable relay coil power loss and heating is avoided even in the on mode. The relay contact can be open or closed when putting into operation. It will be synchronised at first operation. This relay is not suitable to feed back the switching voltage signal of a dimmer switch. The electronics does not have an internal power supply and therefore no standby loss. The microcontroller is activated when the control contact closes. This switches the bistable relay to the correct direction. The bistable relay switches back either when the control contact opens or when the control voltage falls.

Art.-Nr.: 22002601	62.80€/St. *

* Recommended retail price plus VAT.
