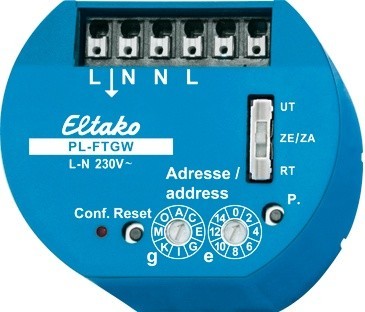

PL-FTGW

PL-FTGW

Powerline pushbutton gateway

Bidirectional Powerline pushbutton gateway. Bidirectional. 53x43mm, 40mm deep for mounting in 58mm switch boxes. Standby loss 1.1 watt. Supply voltage 230V. Power consumption in operation 1.1 Watt. Powerline telegrams from the grid taught-in into the gateway are automatically transformed and sent into Eltako-wireless telegrams. Wireless telegrams taught-in into the gateway are transformed into powerline telegrams and modulated to the power supply grid. By pressing the reset button, the PL-FTGW will be put into the teaching-in mode. The rotary switch selects, whether wireless or powerline telegrams should be taught-in. One being taught powerline sensor is automatically assigned by operating in the learning mode, a free radio channel. A free wireless channel is automatically assigned to a taught-in powerline sensor with con­firmation in teaching-in mode. Up to 80 Powerline sensors or feedbacks can be taught-in. The function as a universal, direction or central pushbutton for a taught-in wireless sensor is assigned via slide switch of the PL-FTGW. The Powerline address is set via rotary switch g and e which should be addressed with the wireless sensor. In addition to wireless switches also Eltako wireless sensors such as window contacts and motion detectors can be taught-in. GFVS control functions for dimming, heating and shading are also possible. The implementation into practical Powerline telegrams für PL actuators is done automatically. Up to 100 different wireless sensor can be taught-in. All records and configurations can be accessed via Sienna-Professional software and power supply. Other functions can then be selected which are not available through the direct teaching-in via rotary switch. In addition, the gateway can be set into the learn and deletion mode, so that a manual teaching-in can be carried out without direct access to the device. The PL-FTGW also serves as a relay station for communication between the temperature controller PL-SAMTEMP with EnOcean actuators FKS-MD1 and FKS-E. Up to 20 actuators and PL-SAMTEMP are managed here.

Art.-Nr.: 31100009 176.50€/St. *

* Recommended retail price plus VAT.

Data sheet
Declaration of conformity
