FT4CH-sz

FT4CH-sz

partner logo partner logo

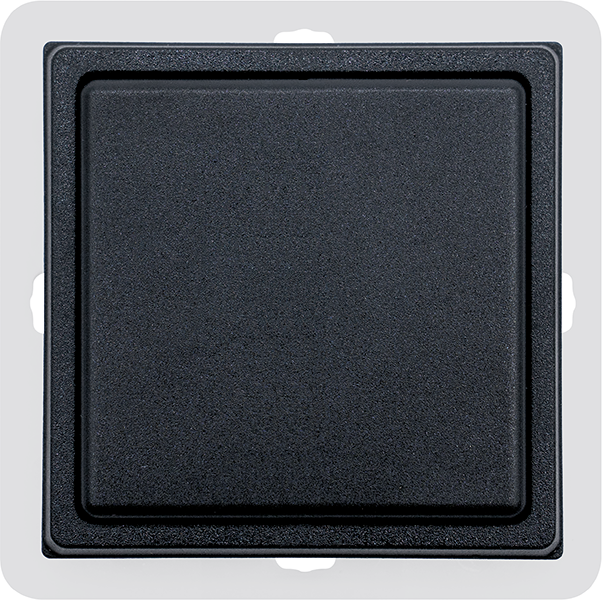

Wireless 2- or 4-way pushbutton without battery or wire, without frame, black

Wireless 2- or 4-way pushbutton for internal frame dimensions 60x60mm, 15mm high, Feller Swiss. Generates the power for wireless telegrams itself when the button is pressed, therefore there is no connecting wire and no standby loss. With rocker and double rocker. Also for cover frames from ABB Normelec and Hager. The scope of supply comprises one large rocker, one double rocker, one ­inter­mediate frame (all same colour), the mounting base, the wireless module and one adhesive foil. Wireless pushbuttons with one rocker can transmit two evaluable signals: press rocker up and press rocker down. Wireless pushbuttons with double rocker can transmit four evaluable signals: press two rockers up or down. The mounting base can be screwed onto a flat surface or glued to the wall, on glass or on furniture using the enclosed adhesive foil. Use the sleeves in the 55mm socket box for screw mounting. The double rocker is snapped onto the wireless module at the factory. If the double rocker is replaced by the large rocker, remove the rocker halves by pulling off to the front. Do not bend towards the middle. Then snap the large rocker so that the markings 0 and I on the back line up with the same markings on the wireless module. Adhesion: First adhere the mounting base and intermediate frame – with the latches pointing at the top and bottom. Then snap on the set comprising the wireless module and rocker – with the marking 0 on the back always pointing up. We recommend stainless-steel countersunk screws 2.9x25mm, DIN 7982 C, for screw ­connections. Both with rawl plugs 5x25mm and with 55mm switch boxes. The wireless module integrated in the wireless pushbutton can be taught-in encrypted as described in the operating instructions in all encryptable actuators of the Series 61 and Series 71 as well as the FAM14. This requires the FTVW wireless pushbutton encryption rocker. Encryptable actuators bear the key pictogram.

Art.-Nr.: 30000224 60.20€/St. *

* Recommended retail price plus VAT.

Data sheet
Declaration of conformity
