S12-110-24V DC

2-pole electromechanical impulse switch, 1 NO + 1 NC

2-pole 16A/250V AC. Modular devices for DIN 60715 TH35 rail mounting with manual control and switch position indicator. 1 module = 18mm wide, 55mm deep. 100% time on. Control power demand 5–6W only. Contacts 1 NO + 1 NC. Contact gap 3mm. Spacing of control connections/contact > 6mm. Devices for 25A XS12. Retrofittable auxiliary contact KM12. The pin-compatible ES12DX-UC, ES12-200-UC and ES12-110-UC electronic impulse switches can also be used. Their universal control voltage UC covers the voltage ranges of 12 to 230V AC at 50-60Hz and 12 to 230V DC.

Art.-Nr.: 21110055	41.50€/St. *

* Prezzo al pubblico suggerito IVA esclusa

ALTRI HANNO VISTO ANCHE:

Impulse switch with bistable relay 10A/250V AC

S12-110-24V DC

2-pole electromechanical impulse switch, 1 NO + 1 NC

ALTRI HANNO VISTO ANCHE:

IFE12-20.13

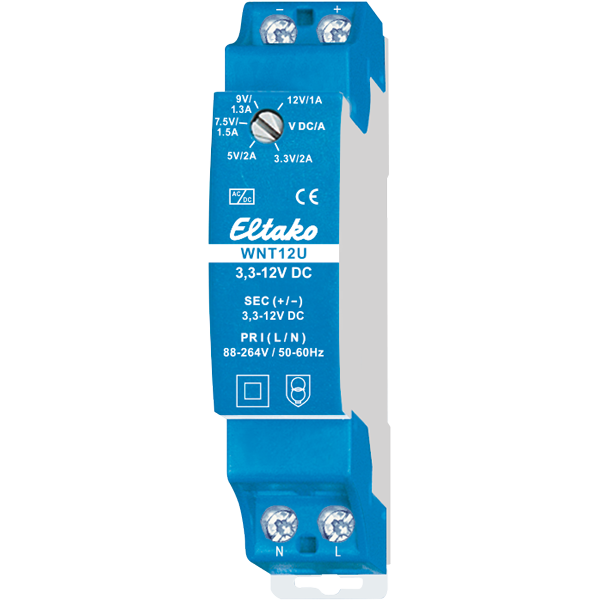

WNT12U/3,3-12VDC

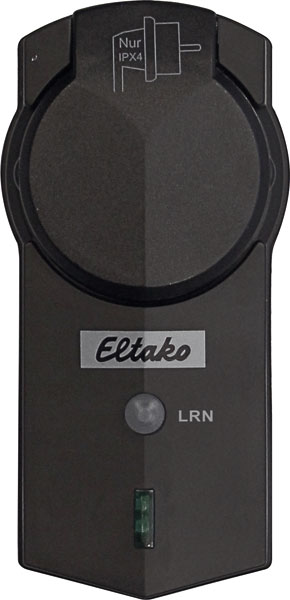

FASWZ-16A

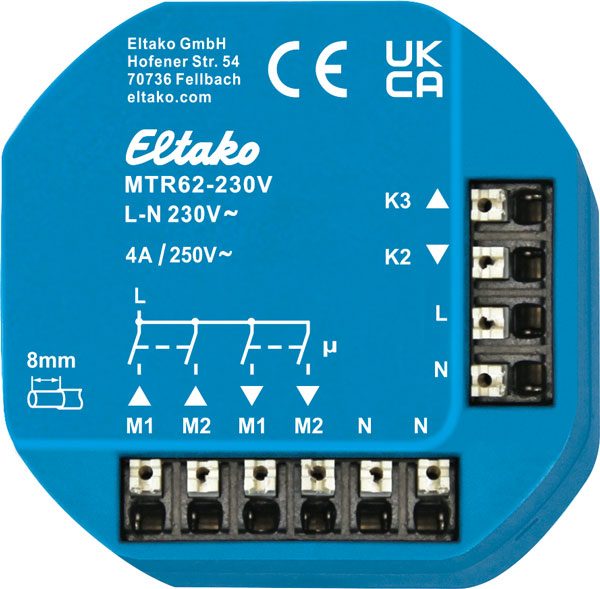

MTR62-230V
