Home / Professional Standard / Time relays, multifunction time relays and timer / RVZ12DX-UC

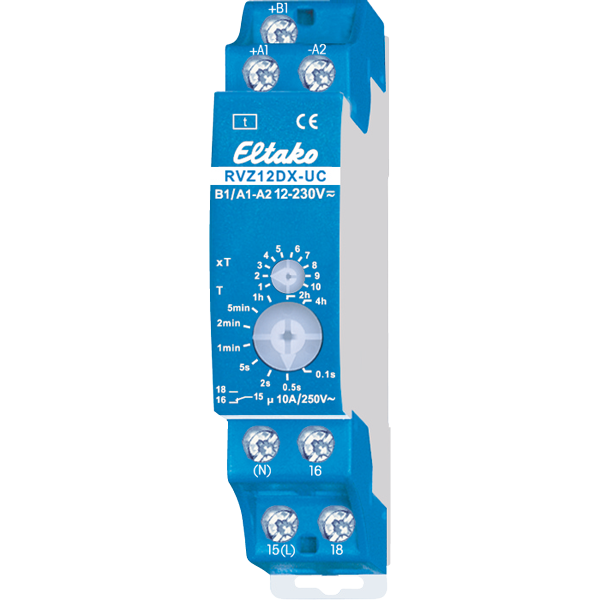

RVZ12DX-UC

RVZ12DX-UC

Analogue settable time relay with release delay, 1 CO contact 10A

Release delay, 1 CO contact potential free 10A/250V AC. 230V LED lamps up to 200W, incandescent lamps 2000W*. Standby loss 0.02-0.4 watt only. Modular devices for DIN-EN 60715 TH35 rail mounting. 1 module = 18mm wide, 58mm deep. With the Eltako Duplex technology (DX) the normally potential-free contacts can still switch in zero passage when switching 230V AC 50Hz and therefore drastically reduce wear. Simply connect the neutral conductor to the terminal (N) and L to 15(L) for this. This gives an additional standby consumption of only 0.1 Watt. Universal control voltage 8 to 230V UC. Supply voltage same as the control voltage. Time setting between 0.1 seconds and 40 hours. By using a bistable relay coil power loss and heating is avoided even in the on mode. The switched consumer may not be connected to the mains before the short automatic synchronisation after installation has terminated. The LED below the big rotary switch indicates the contact position while time-out is in progress. It is OFF while the relay contact 15-18 is open (15-16 closed), and is continuously ON as long as the relay contact 15-18 is closed (15-16 open). The time base T is selected by means of the middle, latching rotary switch T. Time-base figures available are 0.1 seconds, 0.5 seconds, 2 seconds, 5 seconds, 1 minute, 2 minutes, 5 minutes, 1 hour, 2 hours and 4 hours. The total time is obtained by multiplying the timebase by the multiplier. The multiplier xT is set on the upper, latching rotary switch xT and is in the range from 1 to 10. Thus, time settings can be selected in the range from 0.1 seconds (time base 0.1 seconds and multiplier 1) and 40 hours (time base 4 hours and multiplier 10). * The maximum load can be used starting at a delay time or clock cycle of 5 minutes. The maximum load will be reduced for shorter times as follows: up to 2 seconds 15%, up to 2 minutes 30%, up to 5 minutes 60%.

Art.-Nr.: 23001202 65.50€/St. *

* Recommended retail price plus VAT.

Data sheet
RVZ12DX-UC
RVZ12DX-UC

Others have also viewed:

IFES12-20TS

Impulse switch with monostable relay 10A/250V AC

IFES12-20TS

Data sheet

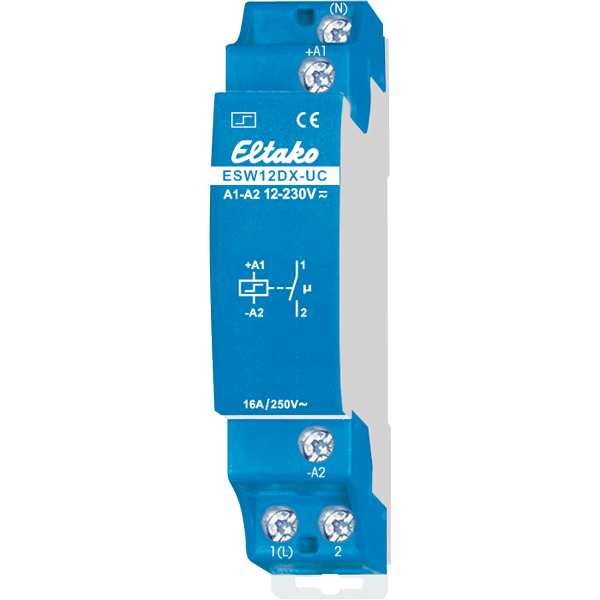

ESW12DX-UC

Impulse switch with tungsten pre-contact, 1 NO contact 16A

ESW12DX-UC

Data sheet_ESW12DX-UC.pdf Operating instructions ESW12DX-UC_21100801-1_dt.pdf
R91-100-12V

1-pole electromechanical switching relay, 1 NO 10A

R91-100-12V

Data sheet R91-100-12V
IFE12-10.11

Impulse switch with bistable relay 10A/250V AC

IFE12-10.11

Data sheet
Download or online
