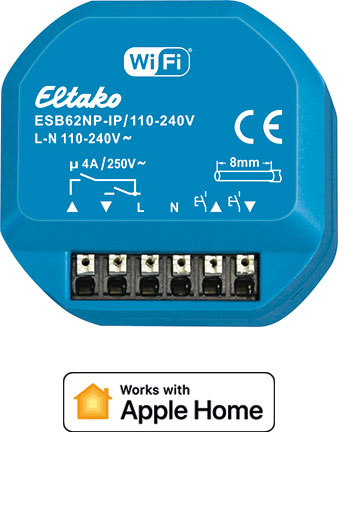

Shading actuator IP via Wi-Fi, 1+1 NO contact 4A, automatic end position detection. Apple Home certified, REST-API and built for Matter
Shading actuator IP via Wi-Fi, 1+1 NO contact 4A/250V AC, not potential free, for a shading element motor 230V AC. automatic end position detection. Apple Home certified, REST-API and built for Matter. Only 0.8 watt standby loss. For installation. 49x51mm, 25mm deep. The terminals are plug-in terminals for conductor cross-sections of 0.2mm2 to 2.5mm2. Zero passage switching to protect contacts. Supply, switching and control voltage locally 110-240V. In case of a power failure the system is disconnected in a preset sequence. State-of-the-art hybrid technology combines advantages of nonwearing electronic control with high capacity of special relays. With control input for a mains voltage control button that may be installed in front of it. Glow lamp current is not permitted. The Wi-Fi link uses the 2.4 GHz frequency band and permits Over-the-Air updates (OTA). This actuator is Apple Home certified and can be officially controlled directly via the Apple Home app and Siri. No additional controller or gateway are required: The Apple Home app offers the following functions:
– Create if-then automations including geofencing.
– Manual switching.
– Call up status.
An Apple controller, e.g. HomePod mini, is required for remote access. As an option, the actuator can be configured via the Eltako Connect app. A development version of the REST API is available through the device’s online product page. This is continuously being further developed. The actuator meets all the specifications for the Matter standard and is built for Matter.
